Key Highlights

- This is L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

- This has Low saturation pressure drop

- This has Low static work current

- On-board two L9110 motor control chip

- Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor

- Input voltage of this stepper motor driver module is 2.5 to 12 Volt DC

- Each channel has a continuous output current 800 ma

Product Description

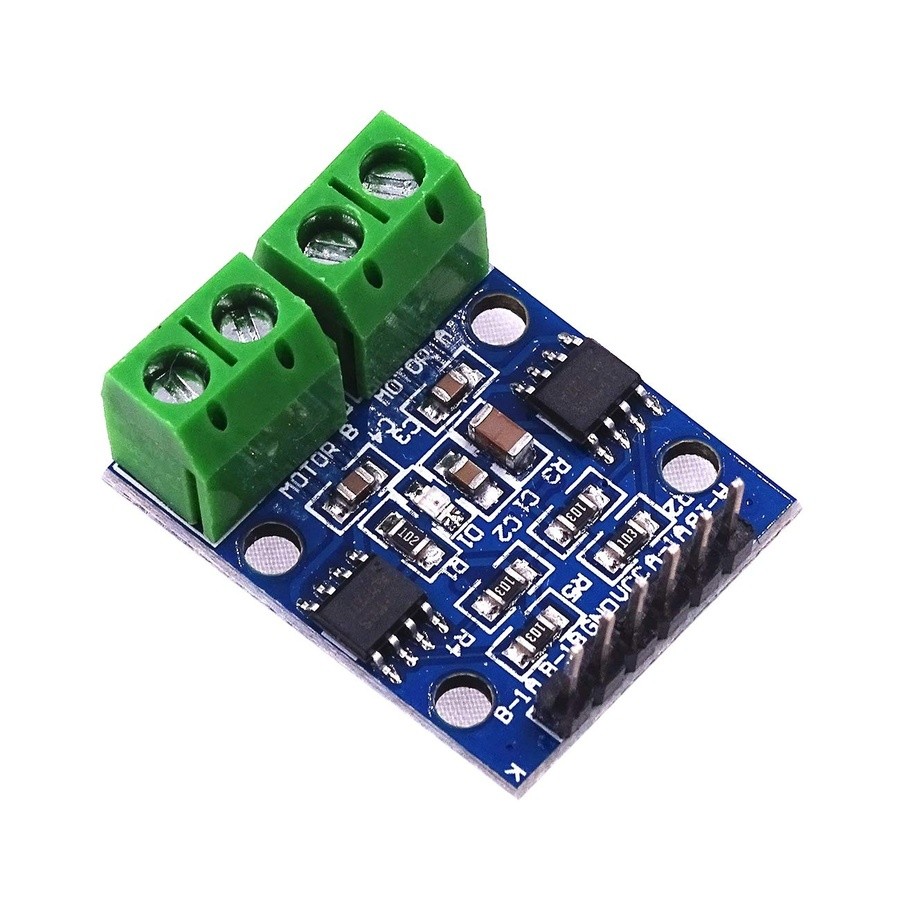

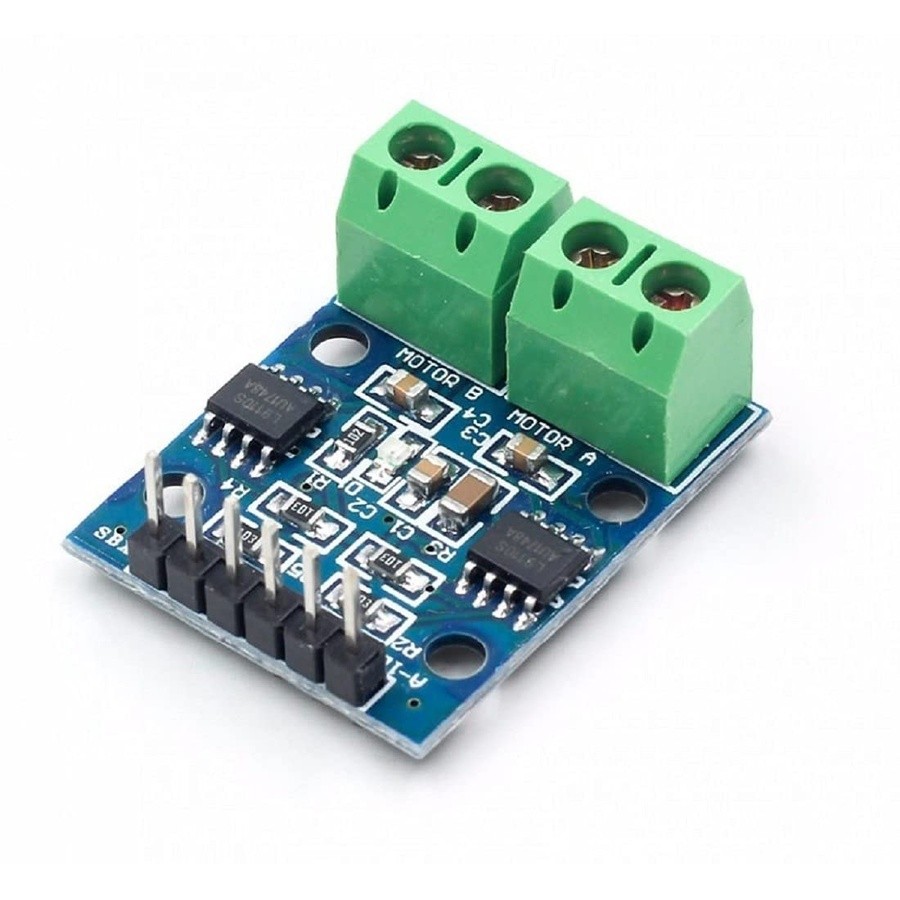

L9110S H Bridge Stepper Motor Dual DC Driver Controller Module For Arduino

The L9110S dual channel h-bridge motor driver module is a compact board that can be used to drive small robots. This module is based on L9110 Motor Driver IC. This module has two independent motor driver chips which can each drive up to 800mA of continuous current. The boards can be operated from 2.5 volts to 12 Volts enabling this module to be used with both 3.3 Volts and 5 Volts microcontrollers. A set of female header pins and jumper wires are used to connect this module to a microcontroller like Arduino. The motors are attached via two sets of screw terminals.
